Mr. Machinist
The ultimate heavy-duty shop floor calculator and interactive training engine built to master machining math and launch your manufacturing career.
The ultimate heavy-duty shop floor calculator and interactive training engine built to master machining math and launch your manufacturing career.
Heavy-duty, high-precision shop mathematics calculated instantly right at your machine. Here is a list of all the calculators Mr. Machinist contains: Calcs!
Uses explicit text references and quick example configurations to demystify complex engineering formulas. This is done by just tapping the upper left Mr. Machinist icon which will bring up educational help explaining how the calculation relates to machining aerospace parts. See example here.
A large portion of this app is dedicated to show a person how to get a job at a machine shop or aerospace facility without having to go to college or a trade school. Check this link out.
Mr. Machinist doesn't just show you a bunch of numbers, it also creates graphs showing exactly how the calculation would be displayed on a print. It also takes all the information and creates a printable and shareable report that can be instantly emailed. Here is an example.
Mr. Machinist instantly converts cutting parameters into precise cycle times and material costs. It eliminates quoting guesswork, keeping you from losing bids by over-quoting or dropping margins by under-quoting. By tracking tool wear and scrap upfront, it ensures every job has a built-in profit margin. See all production estimators here.
Here are a few calculator examples

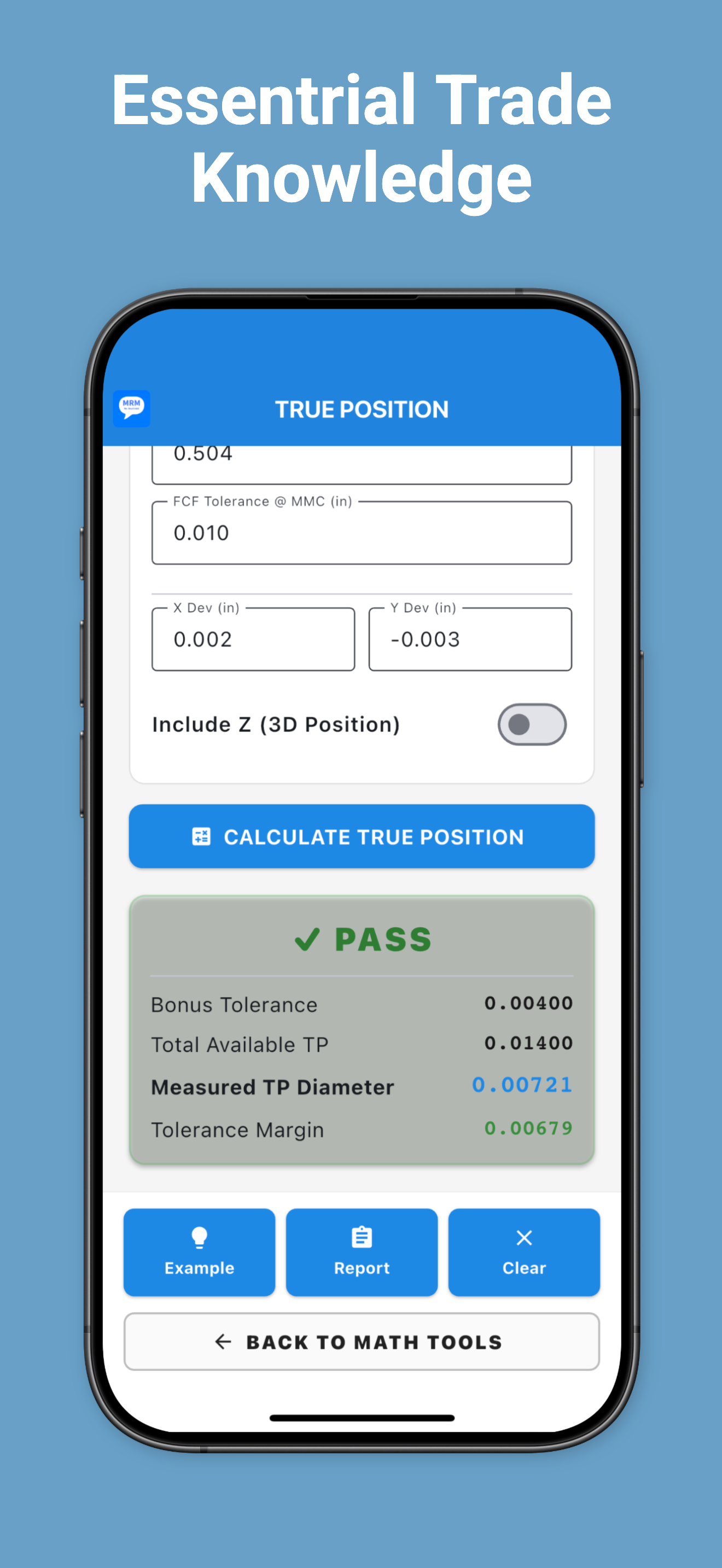

Instantly compute actual True Position deviations from basic blueprint dimensions using coordinate deviations ($X$ and $Y$). Features full engineering support for Maximum Material Condition (MMC) bonus tolerance calculations, factoring in actual versus nominal hole sizes to rescue parts that would otherwise be incorrectly scrapped by rigid inspection rules.
The layout breaks down the geometric multipliers ($2 \times \sqrt{\Delta X^2 + \Delta Y^2}$), visually explaining to operators how a square coordinate window converts into a cylindrical tolerance zone on inspection reports.

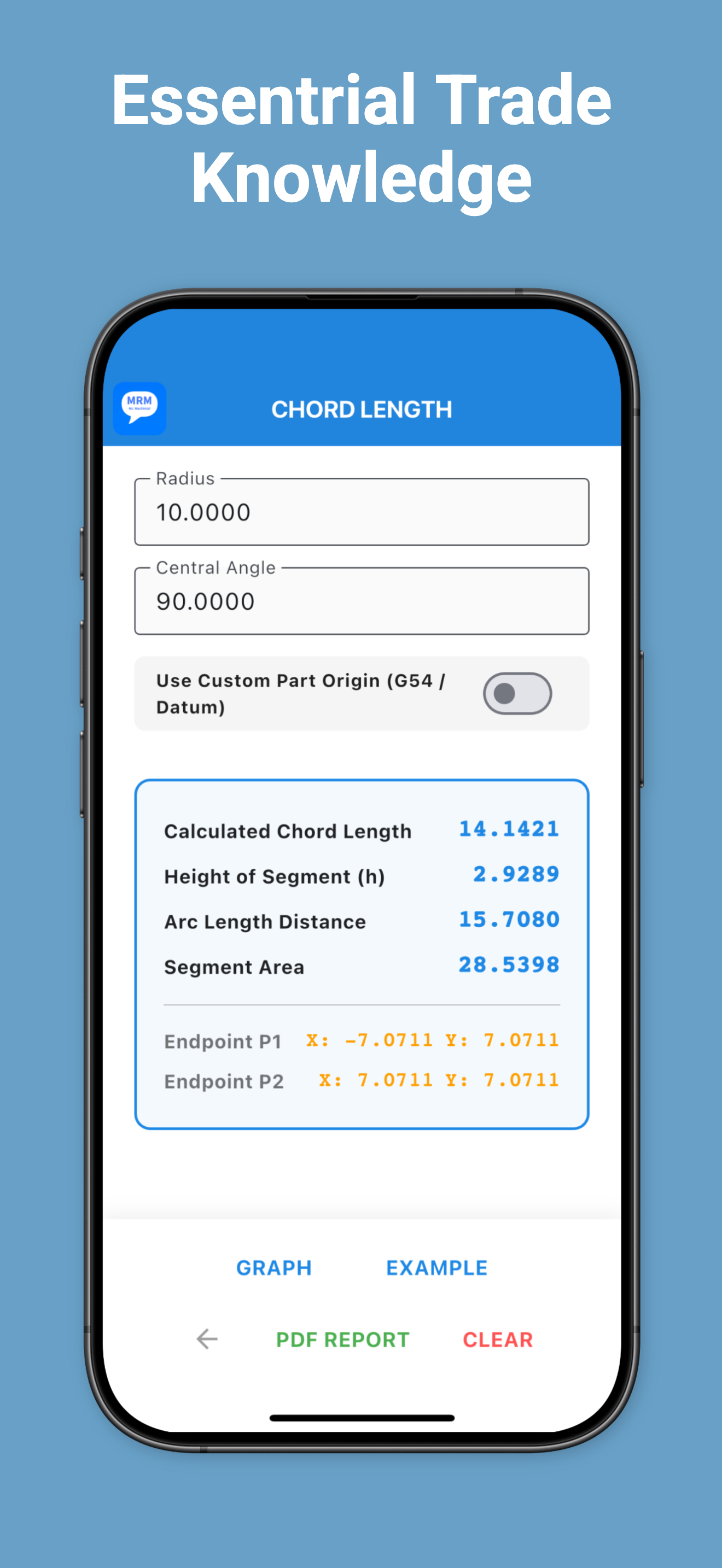

Resolve intersection points, circles tangent to lines, chord lines, and segment heights without manual coordinate layout plotting. Perfect for locating arc centers on raw castings, setting up complex profiles on manual machinery, or verifying tool path coordinates before programming a CNC profile cycle.
Provides step-by-step vector path tracking based on basic shop geometry rules, training machinists to identify hidden centerline landmarks right on physical material setups.

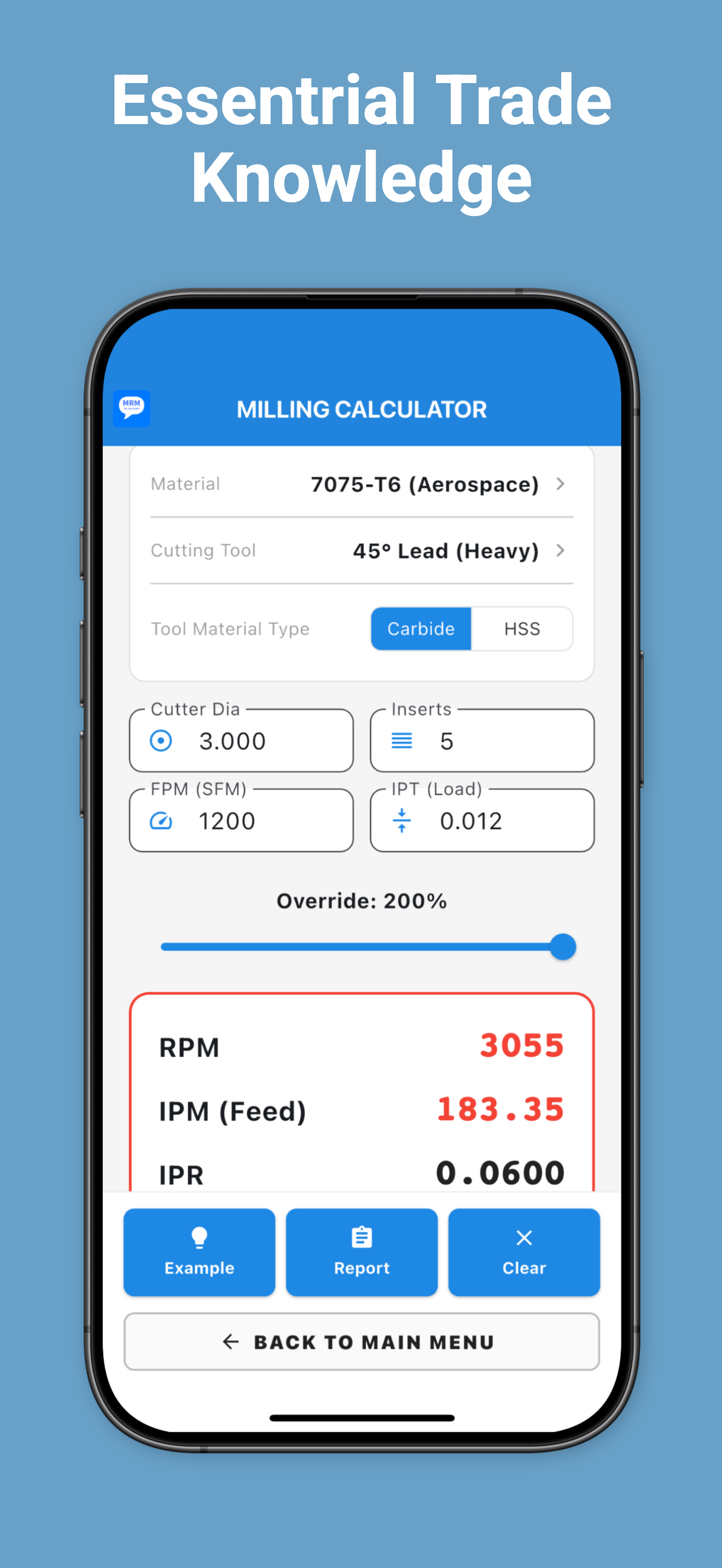

Optimize spindle RPM guidelines and axis table feed rates for standard milling cutters, drills, and turning materials. Instantly safeguard tools from premature edge breaking, excessive heat glaze friction, or chipped carbide inserts by resolving exact superficial feet parameters.
The companion help texts break down the dynamic proportional relationship between chip load per tooth, surface footage constants, and volumetric removal cycles, matching actual mechanical setup configurations on the floor.

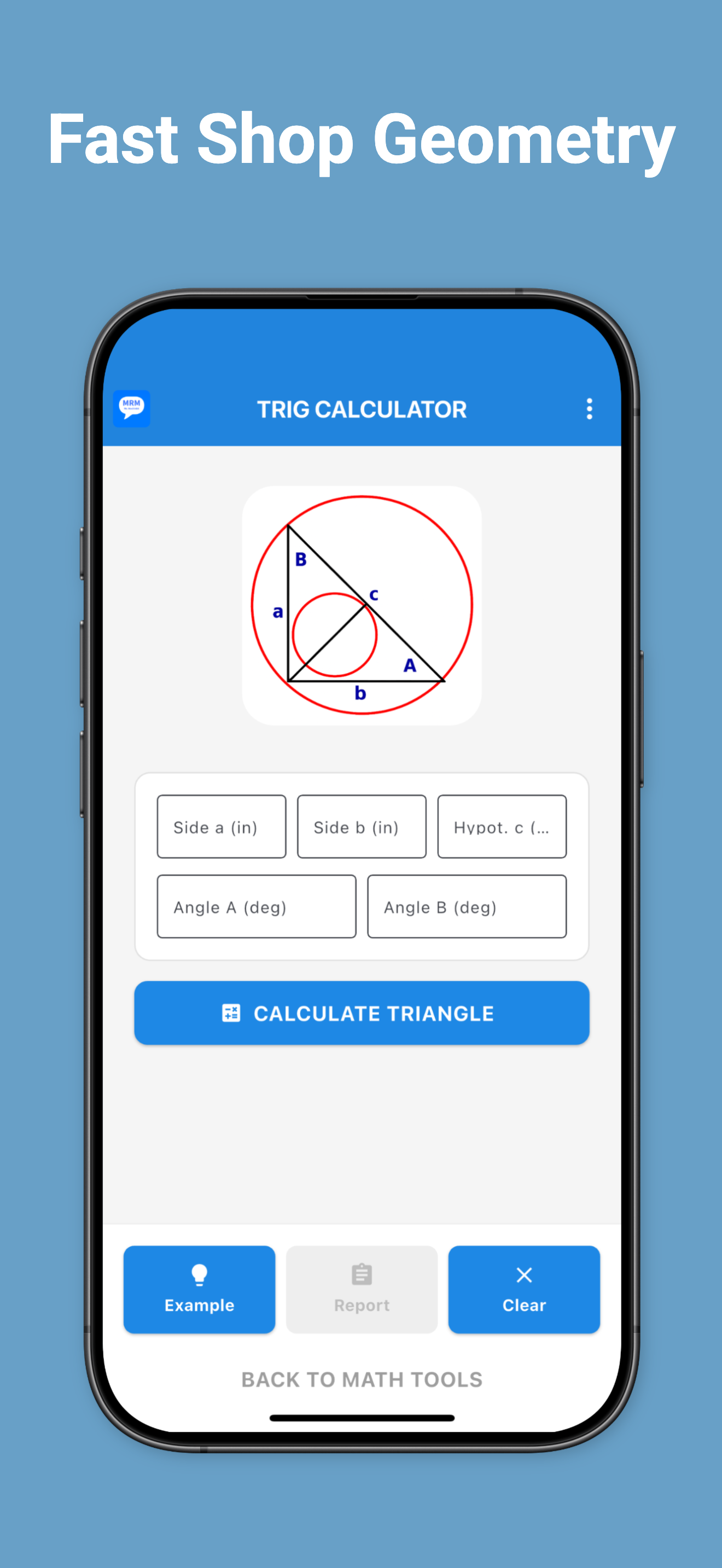

Solve unknown sides, compound bevel angles, step drop dimensions, and sine plate spacing configurations instantly. Stop cross-multiplying long geometric fractions on a scratchpad or scrambling to find reference handbooks mid-setup.
The system generates clean, readable geometric breakdown vectors explaining exactly which trigonometric ratio applies to your fixture plane, building raw mathematical intuition that operators leverage every day.

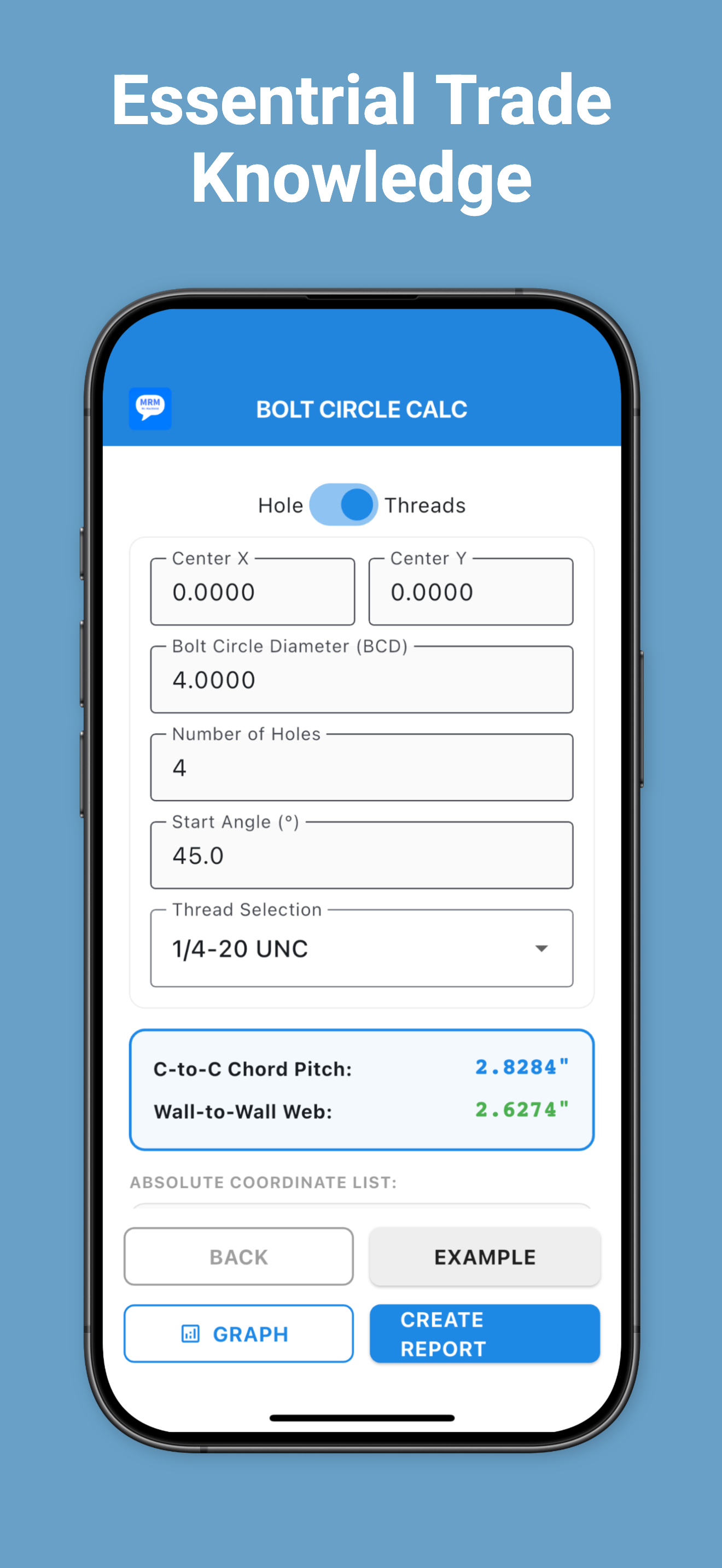

Compute precise absolute Cartesian coordinate positions along a Pitch Circle Diameter with ease. Features custom starting angles, standard metric/imperial center drill reference lookup tables, and live real-time metrics calculating Center-to-Center chord pitch alongside remaining Wall-to-Wall material webs.
Inject benchmark pattern presets instantly with the "EXAMPLE" tool, then launch a high-contrast dark blueprint preview canvas displaying dynamic coordinate tracking grids that visually map out exactly how parts locate on milling fixtures.

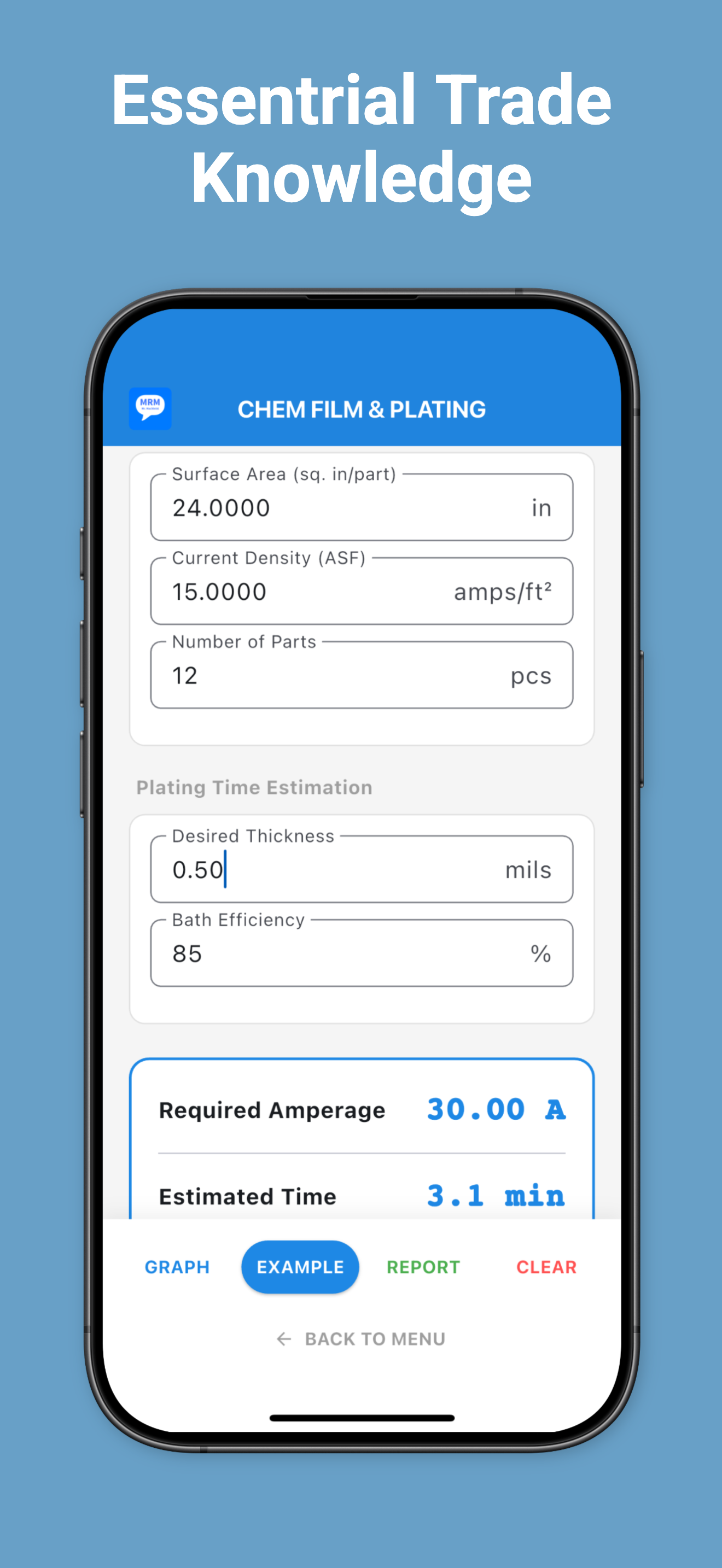

Calculate exact dimensional changes caused by chemical treatments, anodizing processes, or cadmium plating layers. Helps aerospace machinists figure out precise pre-plate machining dimensions so parts fall right in the center of print tolerances after finishing lines add material build-up.
Clearly breaks down the difference between uniform surface thickness growth versus total outer diameter changes, keeping operators from turning undersized threads before process subcontracts.

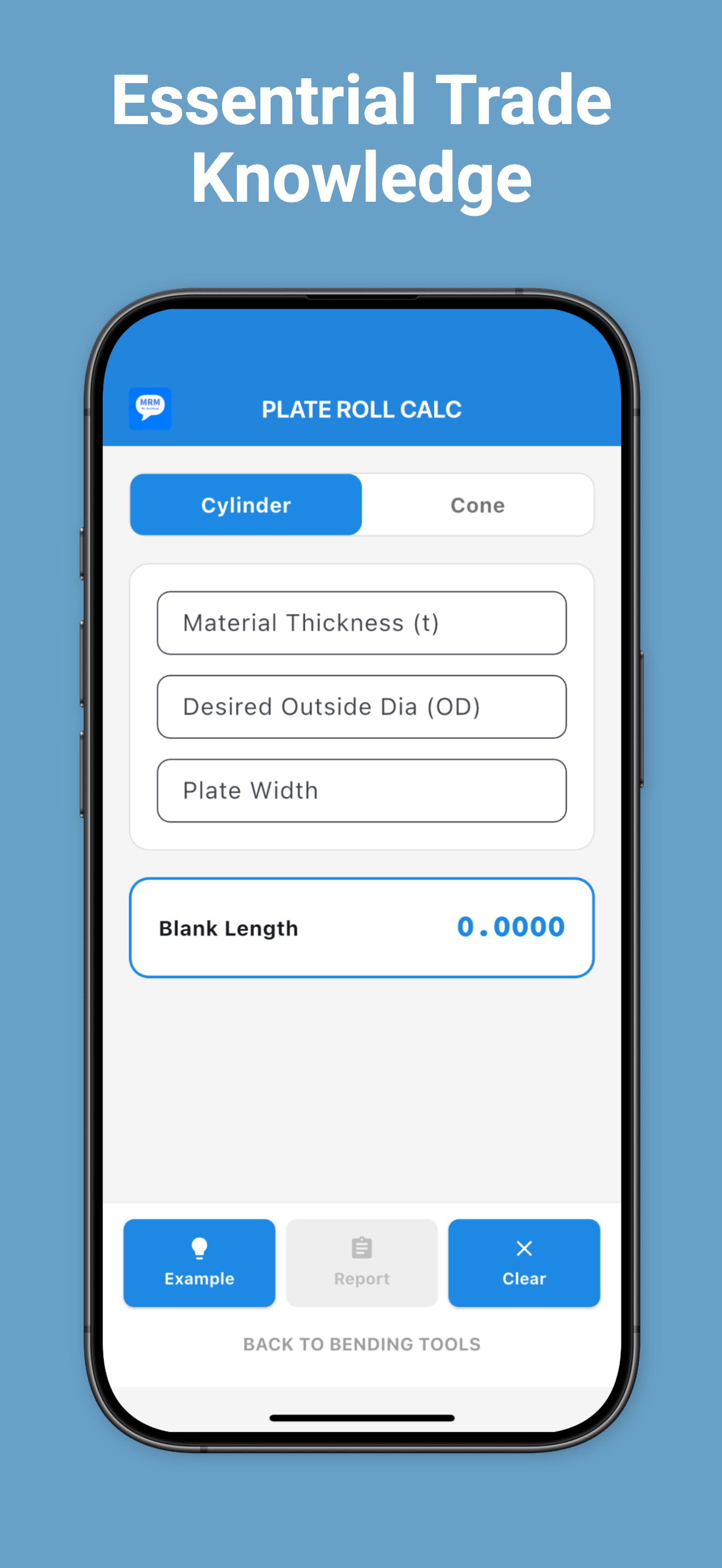

Resolve accurate sheet metal development profiles instantly. Calculates flat pattern layout lengths using exact material thickness parameters, inner bend radii, K-factors, and punch wrap configurations to avoid part tearing or structural geometric distortions during brake operations.
Isolates the neutral axis layout boundaries using dynamic formulas, showing apprentices how stretching variations deform thick sheet stock over standard lower dies.

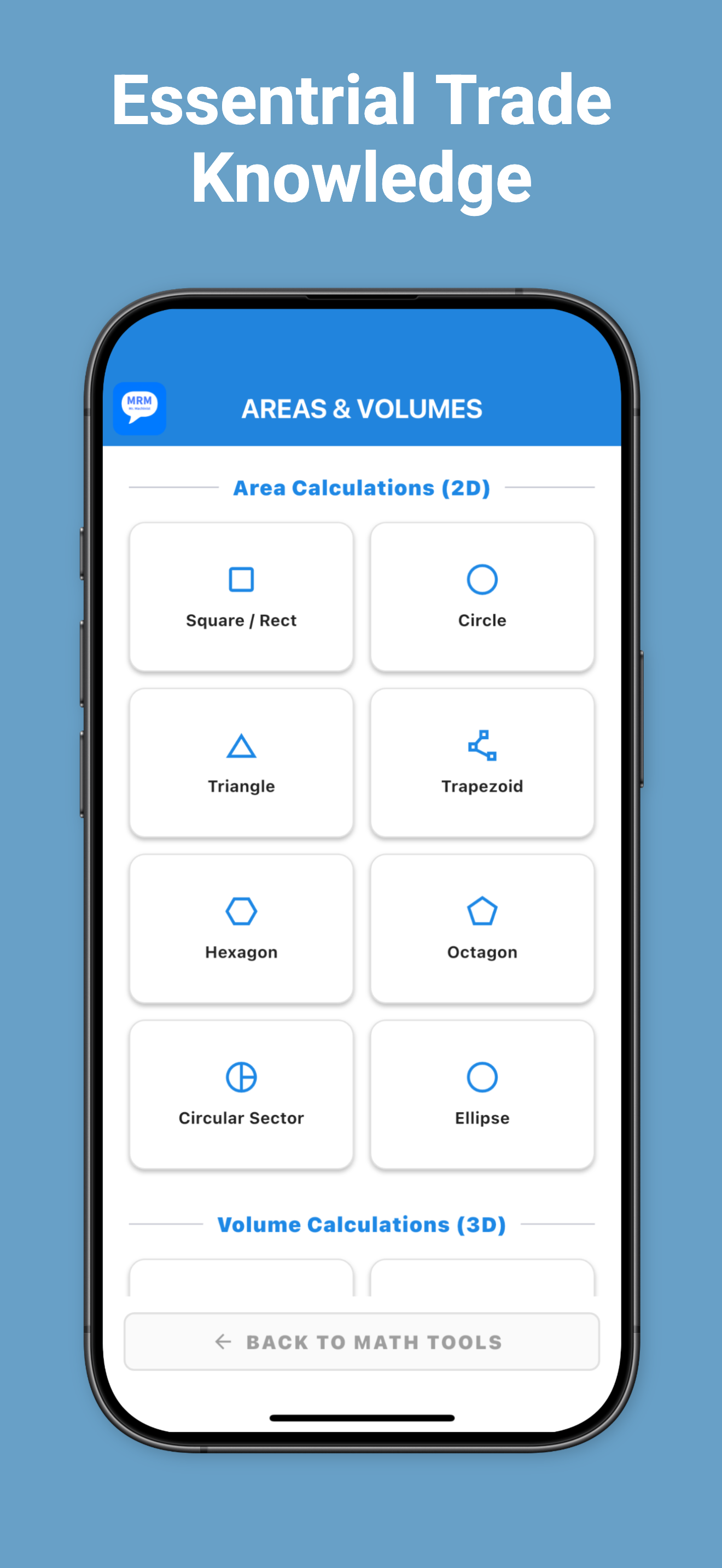

Solve geometric areas and structural volumes for complex shapes like hex bar configurations, hollow tube profiles, cones, and spheres. Instantly pairs volume metrics with metal density constants (Steel, Aluminum, Titanium, Brass) to determine accurate raw stock weight data before planning setup cuts.
Links abstract spatial geometry algorithms directly with tangible raw shop floor materials, teaching handlers how bulk stock choices affect weight limits and overhead material costs.

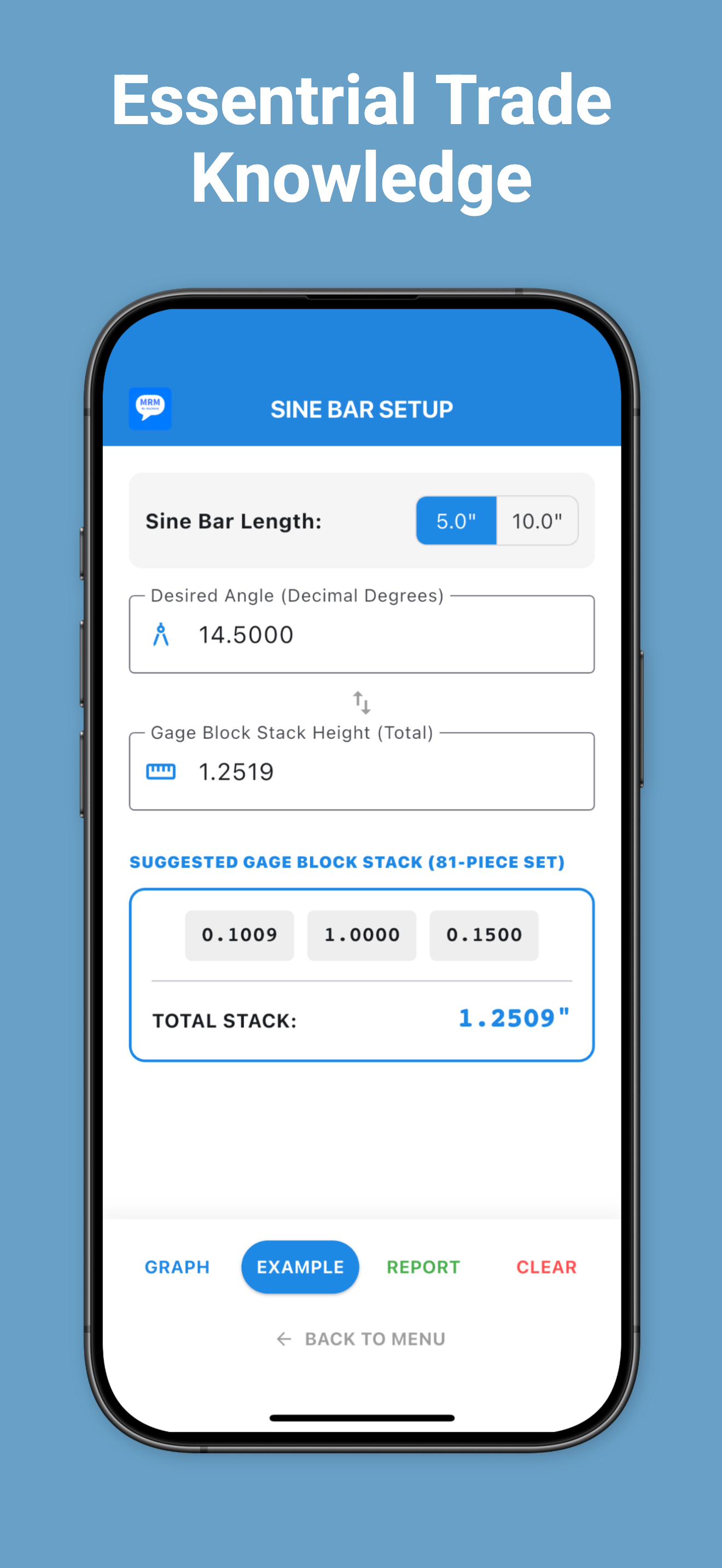

Determine exact gauge block stack heights required to prop up standard 5-inch or 10-inch sine bars to specific target angles. Bypasses old lookup booklets and eliminates calculation errors when establishing critical inspection or milling angles on surface plates.
Uses explicit trigonometry tutorials to explain how stack heights match up with sine ratios ($\text{Height} = \text{Length} \times \sin(\theta)$), reinforcing precision calibration concepts directly on your workspace plate.
Formal vocational schooling and corporate manufacturing certificate bootcamps can cost thousands of dollars and take months to complete. Mr. Machinist is built to bypass those financial blocks completely.
By combining tactical daily production math tools with explicit tutorial documentation, this platform acts as a fast-track apprenticeship wrapper. You'll master blue-collar industrial communication standards, gain fluency with blueprints and raw coordinate spaces, and build the precise shop-IQ required to breeze through floor evaluation tests, ace interviews, and command top entry wages from day one.
