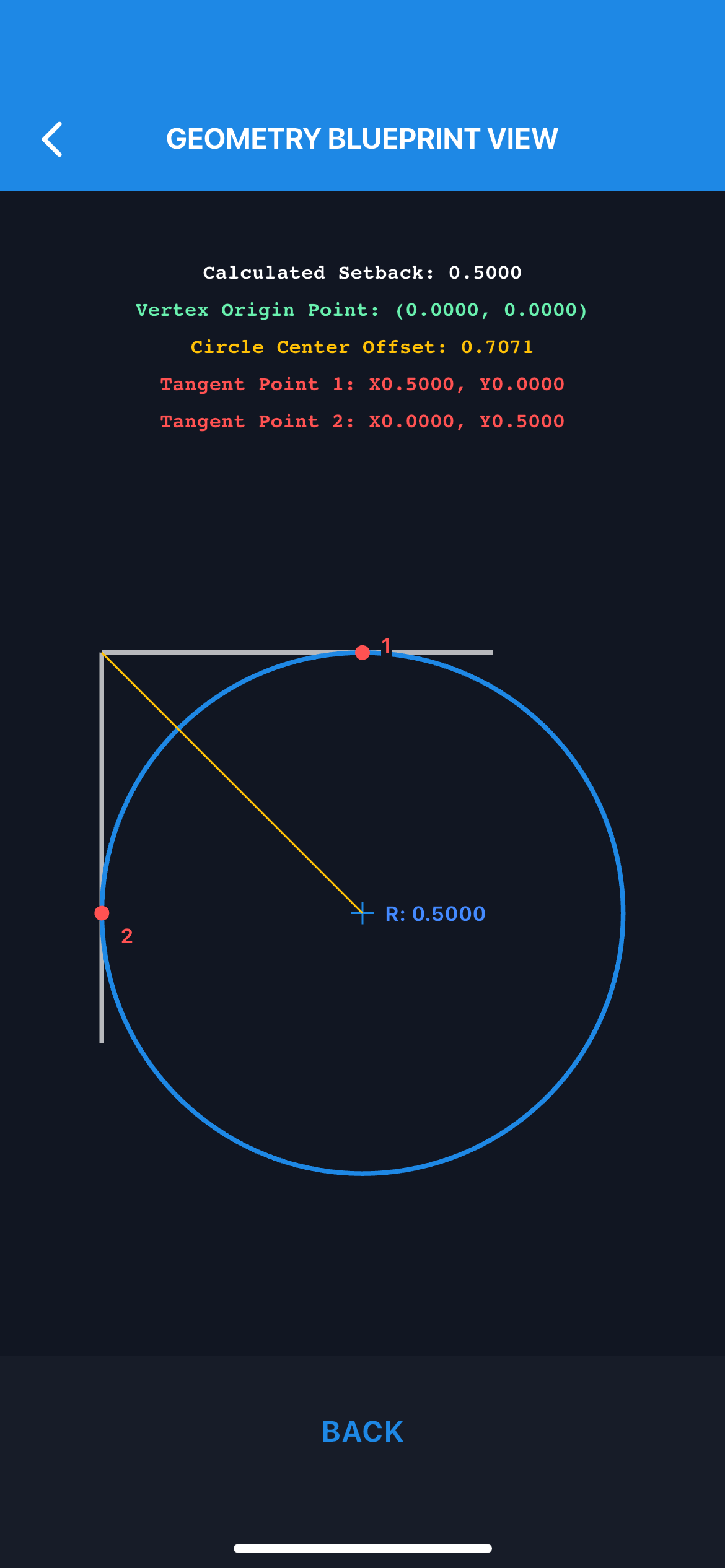

Live Layout Graphing
Punching data configurations into standard calculators leaves operators blind until the first toolpath cycle engages. The Graph module inside Mr. Machinist intercepts this vulnerability by instantly rendering input dimensions onto a clear blueprint canvas. It converts rows of numbers into a spatial schematic, allowing the handler to immediately cross-verify part setups visually before cycling raw stock.
Visually maps out coordinate geometry transformations, showing apprentices exactly how absolute G54 coordinate datums or pitch circles align on material features.
If a decimal point is misplaced or an angle is wrong, the visual outline immediately distorts on screen, flashing red flag warnings before a tool edge ruins a part.
Full PDF Inspection Sheets
Documentation tracking is the baseline law of professional aerospace and precision manufacturing environments. Tapping the Report engine captures active data states, calculated toolpath coordinates, and vector graphics, compiling them into a high-contrast document. It utilizes an ink-saving pure white template background optimized for industrial toolroom printers.
Instantly send absolute coordinate point matrices over to programming desks via text or email, allowing them to rapidly copy-paste variables directly into code blocks.
Leave a dependable paper trail. Hand over structured, formatted True Position summaries and plating logs to quality inspectors to speed up part qualification sign-offs.
Share step-by-step math breakdowns wirelessly across the floor during shift handoffs, keeping manufacturing operations fully aligned without communication errors.
